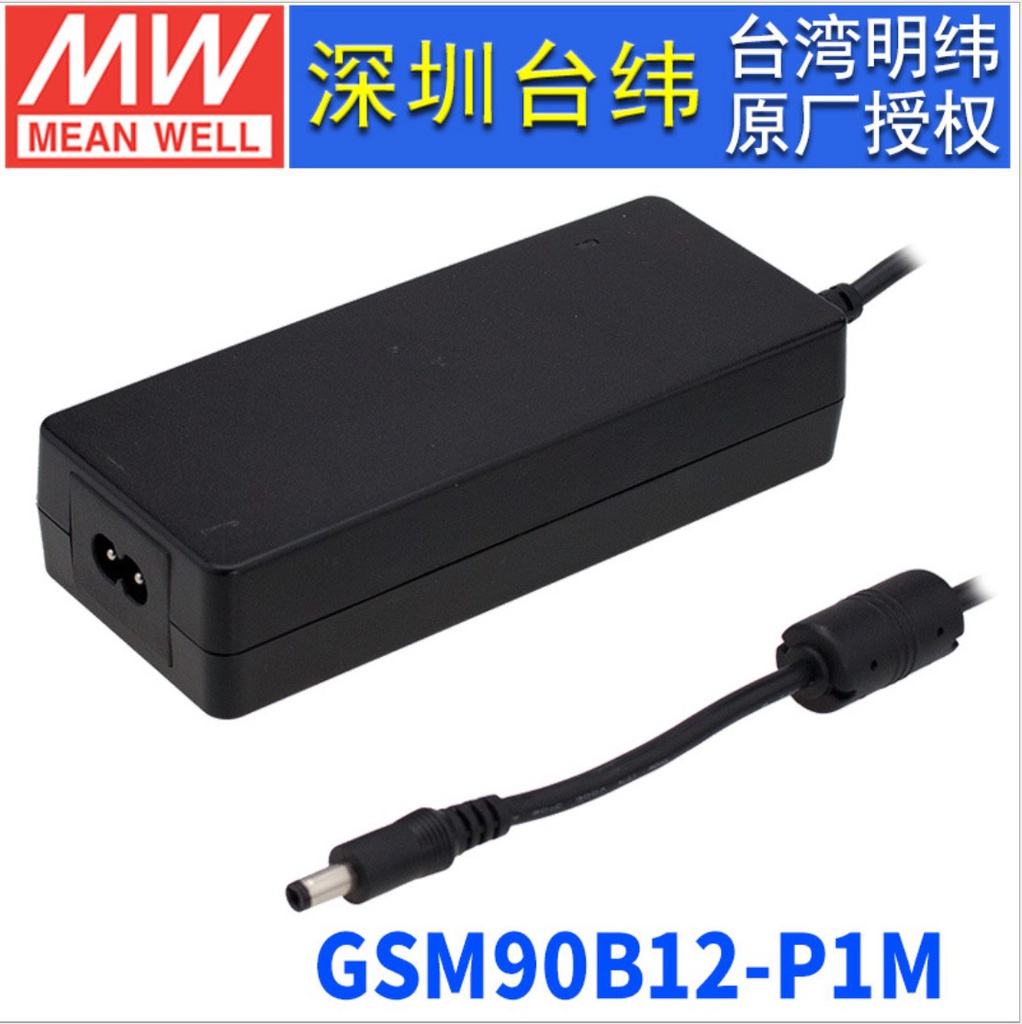

GSM90AXX-P1X

    This combination does not exist.

    Please contact us for a quote
    Input Voltage: 90 VAC to 264 VAC, 135 VDC to 370 VDC
    Number of Outputs: 1 Output
    Output Power: 80, 90W
    Industry: Commercial
    Dimension: 145*60*32mm (L*W*H)
    Packing: 0.45kg
    DC Output Connector: 2.5 mm Barrel Plug (2.5x5.5)
    DC Output Cord Length: 1 m


    Model NoGSM90A12GSM90A15
    		GSM90A19
    		GSM90A24
    		GSM90A48
    DC Voltage12V15V19V24V48V
    Rated Current6.67A6A4.74A3.75A1.87A
    Rated Power80W90W90W90W90W
    Ripple&Noise(max)120mVp-p120mVp-p
    		120mVp-p
    		180mVp-p
    		200mVp-p
    Voltage Tolerance+-5.0%+-5.0%
    		+-4.0%
    		+-3.0%
    		+-2.5%
    Line Regulation+-1.0%+-1.0%
    		+-1.0%
    		+-1.0%
    		+-1.0%
    Load Regulation+-5.0%
    		+-5.0%
    		+-4.0%
    		+-3.0%
    		+-2.5%
    Efficiency88%89%
    		89%
    		90%
    		91%
